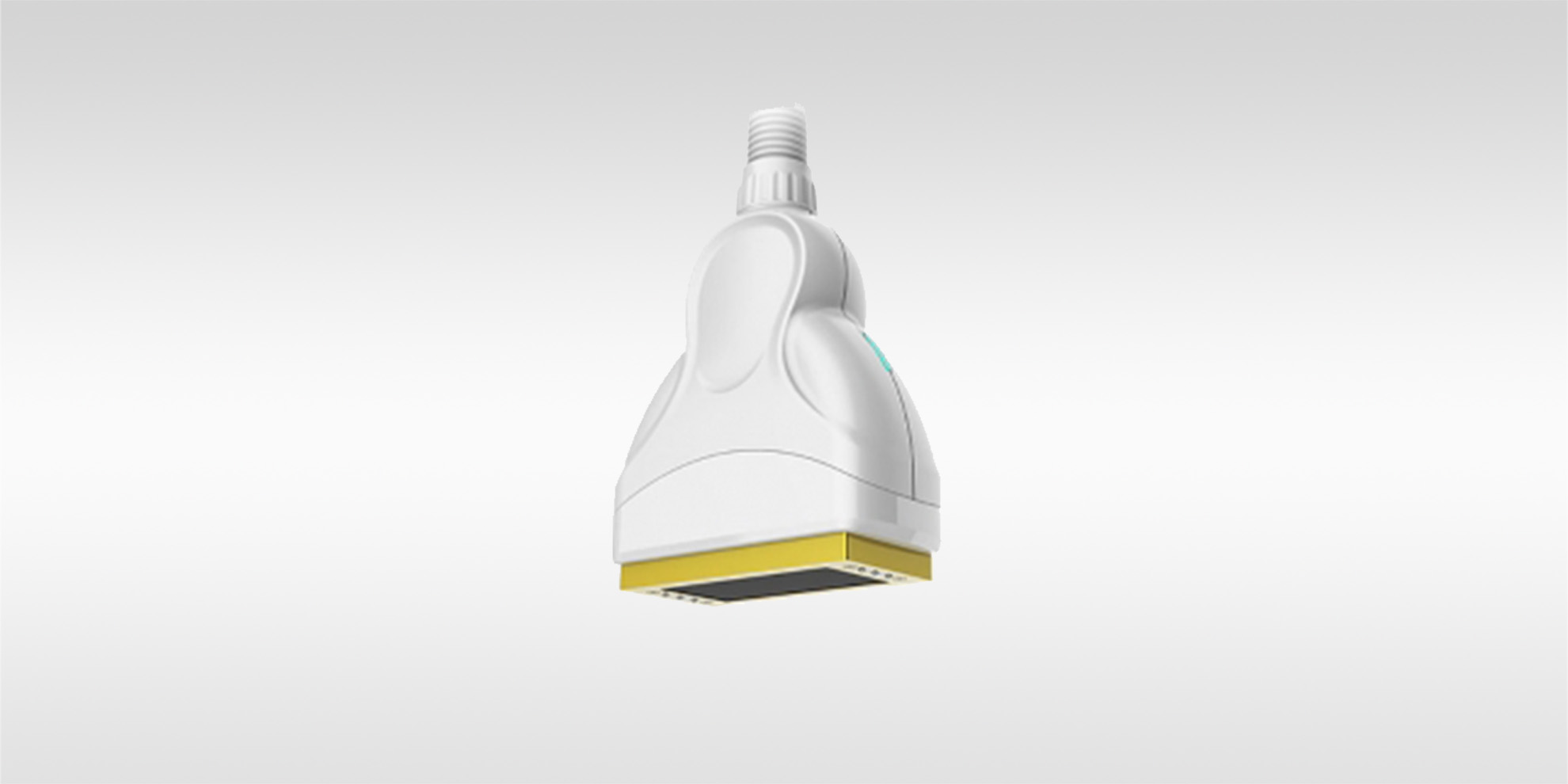

Slimming Diode Laser Emitter
Slimming Diode Laser Emitter
Technical Specifications
Technical Specifications
| Parameter | Unit | Value |
| Optical characteristics | ||
| Power | W | 50 |
| Beam size | cm | 4*8 |
| Power Density | W/cm2 | 1.56 |
| Beam Unitormity | % | ＞85 |
| Center Wavelength | nm | 1064 |
| Wavelength Tolerance | nm | ±15 |
| Wavelength Temp Coeficient | nm | ~0.4 |
| Electrical Parameters | ||
| Operating Current | A | ≤70 |
| Operating Voltage | V | ＜2 |
| TEC Current | A | 15 |
| TEC Voltage | V | 11.2 |
| Threshold current | A | ＜12 |
| Slope Eficiency | W/A | ＞0.8 |
| Other Parameters | ||
| Recommended Healsink Capacty | W | 150 |
| Thermistor Rt | - | NTC, R= 10KΩ (25℃)，B=3862K |
| operating Temperature | ℃ | 15 - 30 |
| storage Temperature | ℃ | -40 - 85 |
For Details, please contact us freely.
