QM-SW9
QM-SW9
Applications
Applications
1.Shoulder pain, Calcific tendonltis;
2.Radial or ulnar humeral epicondylitis;
3.Trochanteric tendonitis;
4.Waist or stern pain;
5.Patellar tendonitis;
6.Tibial stress syndrome;
7.Achillodynia;
8.Plantar fasciitis;
9.Broken fat, cellulite removal
Working Principle
Working Principle
Extracorporeal Shock Wave Therapy (ESWT) involves the conversion of a sound wave into a shock wave that is applied repeatedly to a specific area of the body. The technique is similar to lithotripsy, which is used to treat kidney stones.
There are several theories about how this treatment works but the most accepted theory is that the micro-trauma caused by the repeated shock waves increases the blood flow to the area and this promotes healing. The treatment is simple, quick and non-invasive.

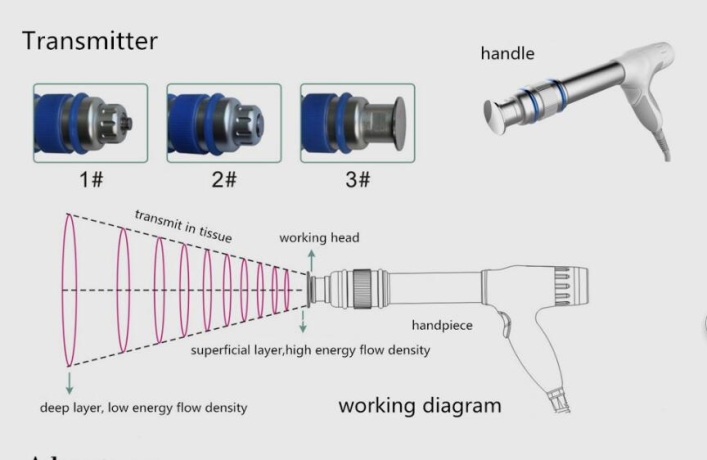

During Extracorporeal Shock Wave Therapy, a high-intensity sound wave is transmitted from a probe through the skin where it interacts with the tissues of the body. This leads to a cascade of beneficial effects such as increased blood flow and metabolic activity to the area, reversal of chronic inflammation, stimulation of collagen and dissolution of calcium build-up. Stimulation of these biological mechanisms creates an optimal healing environment. As the injured area is returned to normal, functionality is restored and pain is relieved.
Technical Specifications
Technical Specifications
Model Number | QM-SW9 |
Technology | Shock wave therapy |
Input Voltage/Frequency | AC 100V~110V,50/60Hz AC220V~230V, 50/60Hz |
Woking Frequency | 1- 21 HZ |
Display | LCD |
Power | 282VA |
Energy | 60 - 185 mj (equivalent to 1.0bar-4.0 bar) |
Dimensions:(cm) | 38.8×30.4×31 |
Packing size(cm) | 52.5X53X95.5 |
Gross Weight | 25kgs |
