iShape II+
+ 查看更多

PreviousEnd
iShape IINext
Next iShape II
iShape II+

Applications
+ 更多

1)  Fat and Cellulite Reduction
2)  Body Contouring
3)  Facial Lifting and Body Tightening
4)  Skin Texture improvement
5)  Lips and eye contours and wrinkle removal
6)  Mechanical Massage

Working Principle
+ 更多

Technology 1: Cavitation
40KHz Cavitation technology in itself means that the ultrasound causes the fat cells to vibrate so fast (high frequency) so vacuum bubbles are formed in the cell. As a consequence, the outer casing of the fat cells (the membrane) is "blown out" and the fat ends outside the cells. Outside of the membrane, the fat can be broken down to rapidly accessible energy, which is then taken up in the blood or transported by lymph nodes, after which they are either burned or stored in other fat cells elsewhere in the body.

Technology 2: 940nm infrared light
Infrared light (IR) has a direct and very positive effect on muscles and joints. IR increases the oxygenation in the cells and gives a warming effect, which leads to increase in the endorphin production that relieves pain and stiffness in muscles and joints. IR also strengthens the elasticity of the connective tissue and increases lymph and blood circulation. When treating the skin in, for example, the face with IR, clogged pores are opened, gray and glossy skin gets a new and finer luster.

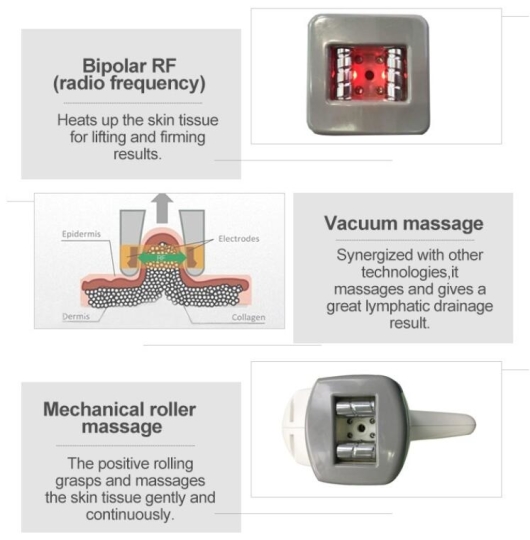

Technology 3: Bipolar RF(radio frequency)
Bipolar RF makes water molecules in the fat revolve with high speed to produce friction and shock, then triglyceride go out from fat. RF energy with 1-10M could get to 4-15mm skin depth, which makes every layer get heat evenly. The new collagen makes skin turn tighten. This Bipolar RF makes the reorganizing fat cells connect more closely, stimulate the collagen re-grow, avoiding flabby skin after slimming treatment.

Technology 4: Vacuum massage
The vacuum massages lift, mold and massage the skin deep and on the surface. The massage also increases the blood circulation, which in turn leads to the release of fat from the fat cells. The massage further provides a tightening of the skin.

Technology 5: Mechanical roller massage
The mechanical roller massage works profoundly on densified connective tissues. The mechanical massage rollers enhance the skin's cell-generating activity, resulting in thickened fat deposits being drained.
iShape II
iShape II

Technical Specifications
+ 更多

Items

Specifications

 LCD screen

 1) Display screen: 10.4”

 2) Display screen of handpiece

Display screen on handpiece 1: 2.4″

Display screen on handpiece 2: 1.9″

 Working mode

 Pulse

 Pulse width

 0.5s-7.5s

 Negative pressure

 1) Absolute value: 80kPa -10kPa (60.8cmHg - 7.6cmHg)

 2) Relative value: 20kPa -90kPa (15.2cmHg - 68.4cmHg)

 Rev of roller

 0-36 rpm

 Working mode for roller

 4 types

 Safety checking

 Real time on line

 RF frequency

 1MHz/5MHz

 RF energy density

 Max: 60J/cm

 Laser wavelength

 940nm

 Laser power

 MAX 20W

 Number of handpiece

 4

 Treatment area

 4mmx7mm、8mmx25mm、30mmx50mm、40mmx60mm

 Rated input power

 750VA

 Mode of power supply

 AC230V±10%,50Hz±1Hz/ AC110V±10%,60Hz±1Hz  (Optional)

 Machine size

 535*348*1075mm

 Packing method

 Wood case

 Packing list

 No. 1 big vacuum RF laser head for body * 1

 No. 2 vacuum RF laser head for arms * 1

 No. 3 vacuum RF laser head for face * 1

 No. 4 dual vacuum cavitation head for body * 1

 Power cord * 1

Before & After
+ 更多

Before & After iShape II
Before & After iShape II
Before & After iShape II
