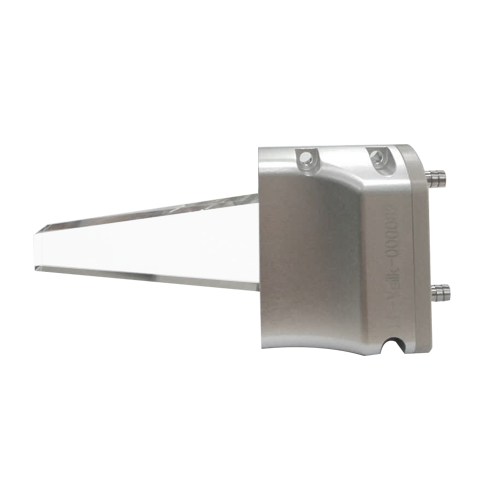

Bars Emitter
Bars Emitter
Technical Specifications
Technical Specifications
| Parameter | Unit | Value |
Diode Laser parameter | ||
Center Wavelength x | nm | 808 |
Wavelength Tolerance | nm | ±15 |
Operating Current lop | A | ≤105 |
Threshold current Ith | A | ≤30 |
Operating Voltage Vop | V | ≤20 |
Module parameter | ||
Max Output Power2 | W | 1000 |
Beam Size | mm | 10*10 |
Net Weight | g | ≈250 |
Water Cooling Parameter | ||
Coolant | - | distilled Water or pure water |
Cooling Temperature | ℃ | 25±3 |
Flow Rate | L/min | 2-4 |
Maximum Inlet presure | kPa | ≤380 |
Working Condition | ||
Operating mode | - | QCW |
Pulse width | ms | up to 100ms |
Duty Cycle | % | DC≤10% @1000W DC≤20% @800W |
For Details, please contact us freely.
