QM-808
+ 查看更多

PreviousQM-808+
QM-808+ 3in1Next
Next QM-808+ 3in1
QM-808-1
  Applications
For any unwanted hairs on areas of face, arms, armpits, chest, back, bikini, legs and etc.
(including light, blond and thin hairs)
QM-808
    Working Principle
Diode laser hair removal technology is based on the selective dynamics of light and heat. The laser goes through the skin surface to reach the root of hair follicles; light can be absorbed and converted into heat damaged hair follicle tissue, so that hair loss regeneration without injury  surrounding tissue. Slight pain, easy operation, the most safe, technology for permanent hair removal now.
It is performed using gold standard 808nm diode laser technology, with energy penetrates deep into the dermis with high average power and a rapid 10 pulse-per-second repetition rate to heat the hair shaft and hair follicle, rather than destroy the oxygen organization around hair follicle.
Meanwhile, contacting surface cooling technology applied on the Sapphire Dual-Chill Tip can eliminate the heat effect attributed to optical energy, greatly improving both the treatment performance and safety.
QM-808
    Specialty of QM-808

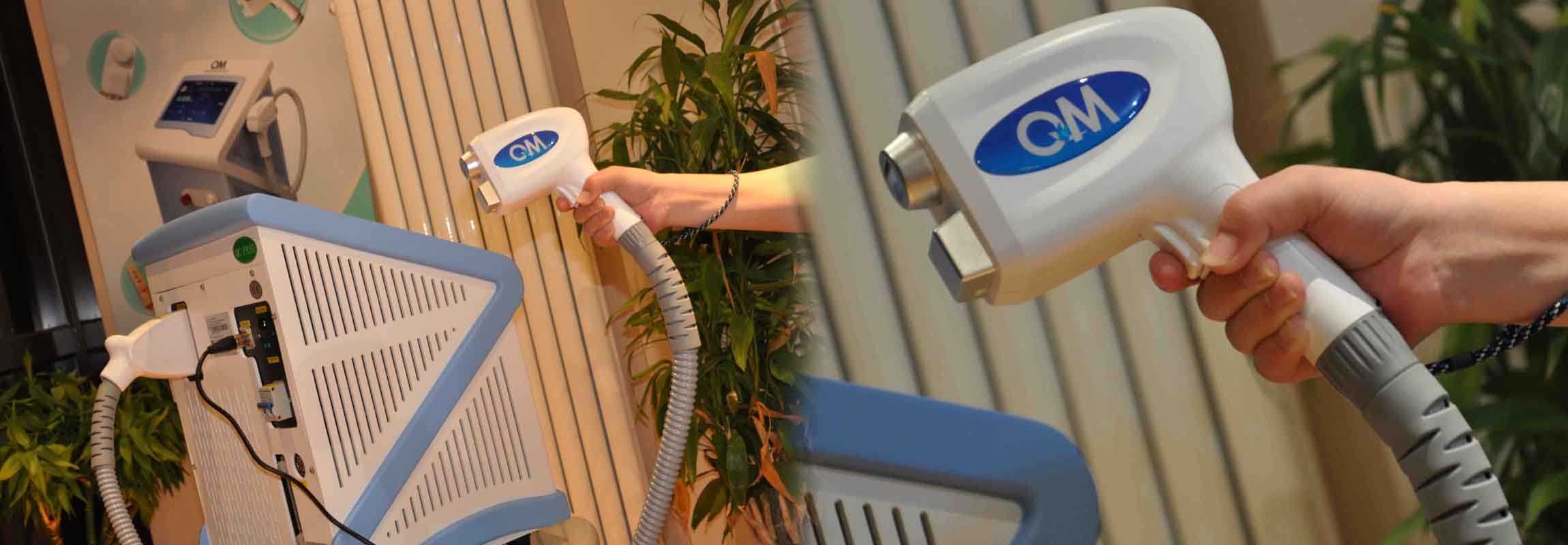

** Dual-Chill Design on the Laser handle
** German Laser Emitter achieve fantastic result and last long lifetime!
808+
QM-808
    Technical Specifications

Laser Type
 Diode Laser (10pcs Bars)
 Laser Stacks Power
 500W
 Wavelength (Spectrum)
 808nm
 Energy Density (Fluence)
 166J/cm2 (Continuously adjustable)
 Spot Size
 15x15mm2
 Pulse Repetition Rate
 1-10Hz
 Pulse Duration
 10-400ms
 Pulses
 Single

 Cooling
 • Continuous Sapphire contact cooling(-5℃~1℃)
 • Air cooling
 • Closed water circulation cooling
 Stand-by Working
 Continuously for 20 hours
 Display
 10″ True Color LCD Touch Screen
 Electrical Requirements
 110/230VAC, 15/20A max., 50/60Hz
 Net Weight
 45kgs
 Dimensions (WxDxH)
 450*550*680 mm
    Before & After
Before&After diode laser
