QM-130
+ 查看更多
PreviousQM-4S
iShape II +Next
Next iShape II +

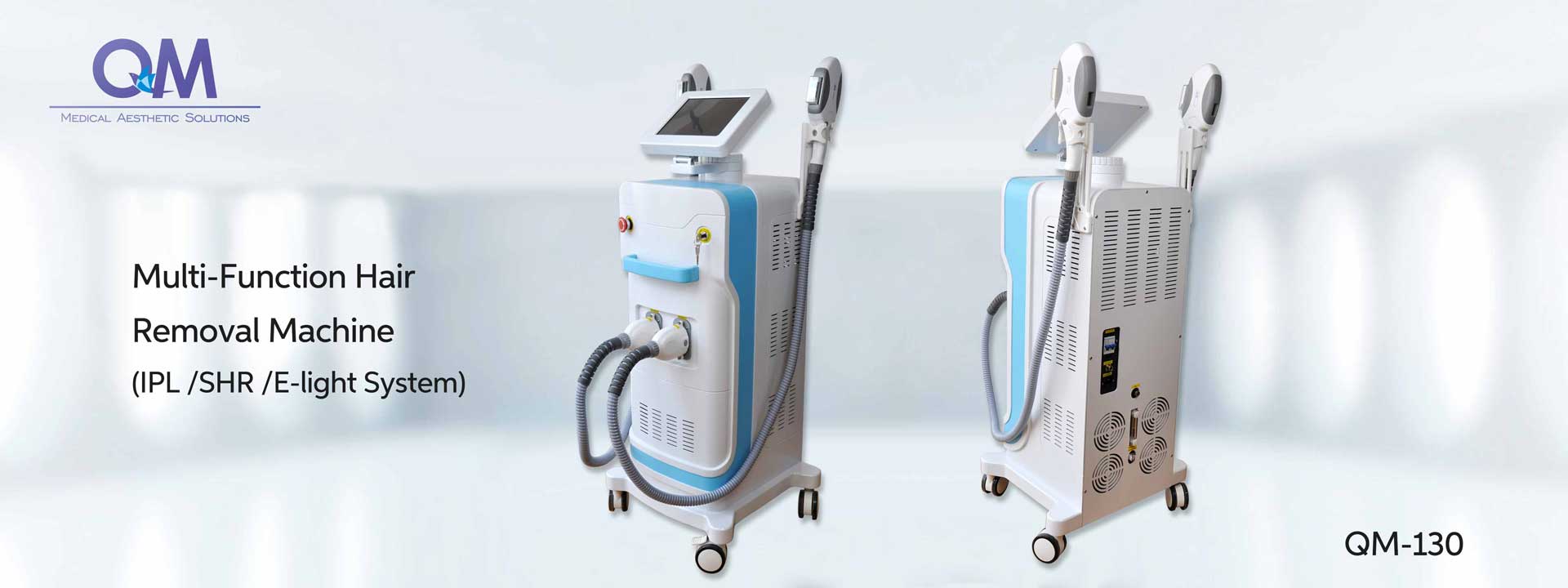

QM-130
    Applications
  1. Permanent hair removal for all skin types and all hair colors!
  2. Skin rejunvenation
  3. Pigments removal
  4. Wrinkle removal
  5. Acnes removal
  6. Vascular Removal
    Working Principle
It is a revolutionary approach, rather that bombarding your skin with high amounts of damaging energy. SHR fires multiple shots but at low Joules, in doing so it gently heats the hair follicle to the heat needed and the most you will feel is warmth and a tingling sensation, some clients comparing it to a warm massage. SHR also utilizes In-Motion technology, where the hand piece is always in motion over the skin.

QM-130+

  Specialty

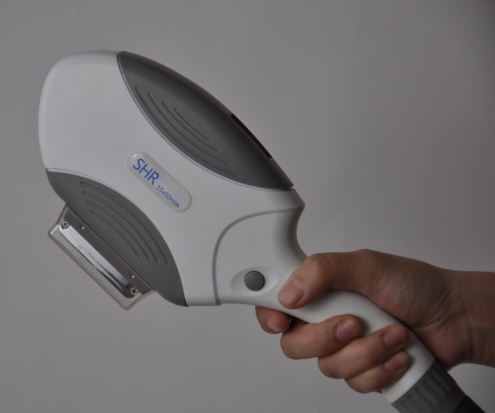

** Unique and Ergonomic design Handpiece.
QM-130+
QM-130+

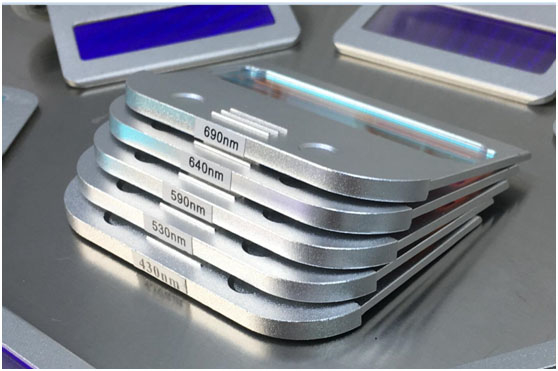

** 5 filters for different treatment
QM-130 (1)
QM-130 (2)
**New Developed 10.4 inch User-friendly Interface

** Top-level Spare parts adopted, guarantee its golden quality and long-lasting lifetime!
QM-130+
QM-130+
    Technical Specifications
Item
SHR +IPL
SHR+SHR
Model
 QM-130
QM-130
IPL Peak Power
2400W
2400W
Wavelength (Spectrum)
SHR: 650-950nm
IPL:430/530/640—1200nm
480/560/750-1200nm(option)
SHR: 650-950nm
Energy Density (Fluence)
SHR:1-26J/cm2
IPL:10-60J/cm2
SHR:1-26J/cm2
Spot Size
SHR:15*50mm
IPL: 12*30mm (15*50mm option)
15*50mm
Pulse Repetition Rate
SHR: 1-10Hz
IPL: 0.5-2Hz
SHR: 1-10HZ
Pulse Duration
1-15ms
1-15ms
Pulses Single and Multi-pulses Single
Cooling
Continuous Crystal contact cooling(-5℃~1℃)+Air cooling
+Closed water circulation cooling
Continuous Crystal contact cooling(-5℃~1℃)+Air cooling
+Closed water circulation cooling
Stand-by Working 20 hours 20 hours
Display 10.4" True Color LCD Touch Screen 10.4" True Color LCD Touch Screen
Electrical Requirements 110/230VAC, 15/20A max., 50/60Hz 110/230VAC, 15/20A max., 50/60Hz
