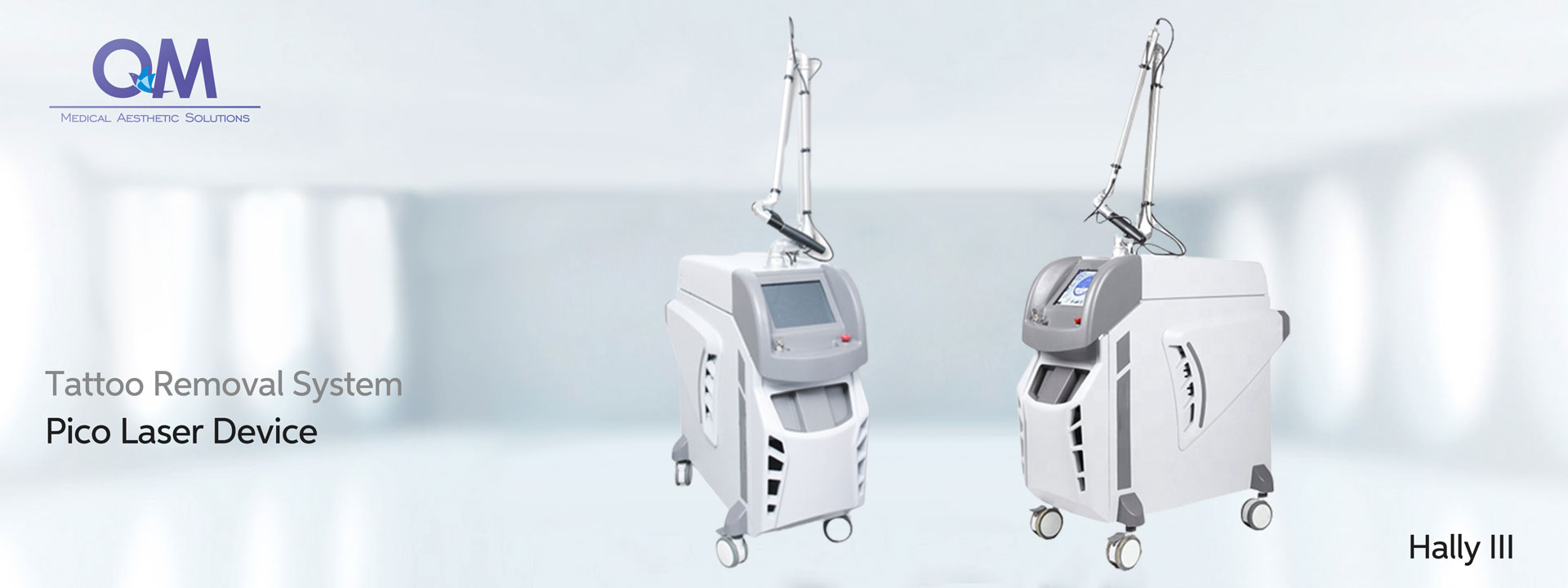

Hally III
Hally III
Applications
Applications
1. Non-ablative Laser Rejuvenation (NALR-1320nm) using carbon peel for skin rejuvenation
2. 532nm: for treatment of epidermal pigmentation such as freckles, solar lentiges, epidermal melasma, etc.
(mainly for red and brown pigmention)
3. 1064nm: for treatment of tattoo removal, dermal pigmentation and treating certain pigmentary conditions such as Nevus of Ota and Hori’s Nevus.
(mainly for black and blue pigmention)
1. Wash blue, black embroider eyebrow
2. Wash coffee embroider eyebrow
3. wash red soal lip
4. Wash coloful tatoo
5. Remove freckle, age pigment
6. Remove nevus of Ota/Congenital-birthmark..
Working Principle
Working Principle
The PicoSecond Laser uses ultra-short pulses (one trillionth of a second in length) to hit the melanin with a great pressure, the melanin shatters into tiny dust-like particles. Because the particles are so small, they are more readily absorbed and eliminated by the body. This can mean better clearance of the melanin and less treatments overall. PicoSecond Laser is a quick and easy non-surgical, non-invasive laser skin treatment for the body including chest or decollete, face, hands, legs, and more.
Specialty of Hally III
Specialty of Hally III
1. Variety of Wavelengths and handpieces Available
1064nm:Dermal pigment lesions and dark color tattoo removal
532nm: Epidermal pigment lesions,red, orange, yellow tattoo removal
755nm: Epidermal pigment lesions, green, blue, purple, brown, black tattoo removal.
Focus lens array: wrinkle removal and skin rejuvenation
2. High peak power. 1200mj High single pulse energy means strong ability to crushes the pigment
3. Focus lens array. fewer treatments, faster clearance
4. Short pulse width (600ps). Efficient destruction of the target pigment with minimal collateral thermal damage meeting the criteria of selective photothermolysis
5. Flat-top hat Beam. Ensure that the energy is delivered efficiently to maximize effect while minimizing damage to surrounding tissue.
6. 1-8mm adjustable spot size. Energy density is automatically adjusted with spot size
Technical Specifications
Technical Specifications
Wavelength | 1064nm & 532nm&755nm |
Energy | 1-1000mJ |
Laser Type | Q-switched KTP Nd:YAG |
Spot Size | 2-8mm |
Repetition Rate | 1-20Hz |
Pulse Width | <10ns |
YAG Bar Size | 6 |
Aiming Beam | 5mW red diode laser, 635 nm |
Stand-by Working | Continuously for 12 hours |
Cooling | Self-contained, closed water cycle |
Display | 6" Dual Color LCD Touch Screen |
Electrical Requirements | 100-240VAC, 20A max., 50/60Hz |
Net Weight | 25kgs |
Dimensions (WxDxH) | 44*35*33cm |
